AV-010

AV-010
Guardian

DETAILS

Air and Vacuum Air Valve

Product Details

Type

Kinetic Air Valve

Applications

Agricultural & Landscape Irrigation Laterals.

Valve Selection

12mm-80mm (3/4”, 1", 2", 3")

Connection

Threaded

Product Details

The AV-010 air & vacuum valve is designed to smoothly discharge air at high flow rates during the filling of the system and admits air at high flow rates during drainage, pump shut-off or at water column separation. The smooth discharge of air reduces pressure surges and other destructive phenomena.

Product Details

Download

AV-010 Catalogue (458KB)

Play

A R I AIR AND VACUUM VALVE AV 010 3

View

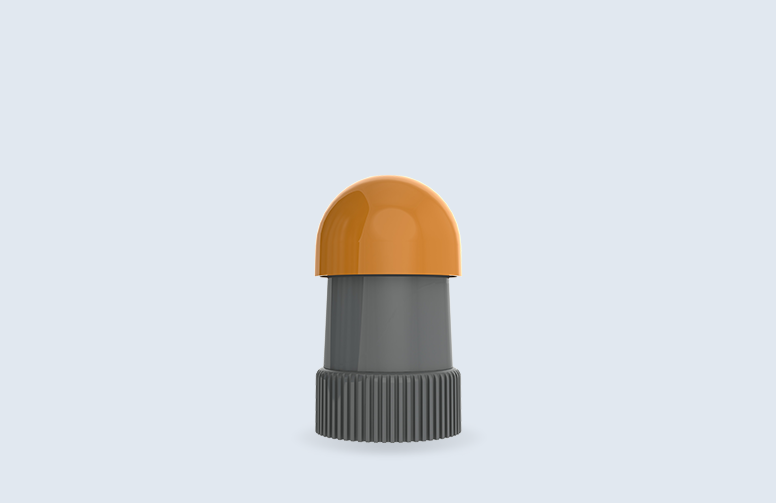

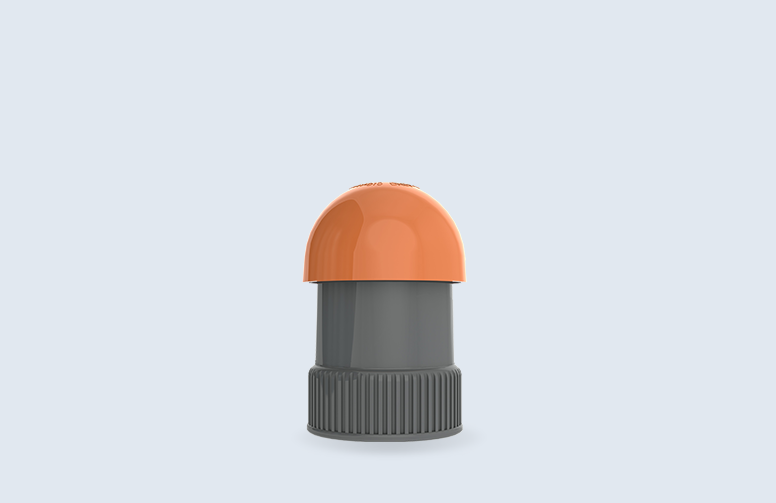

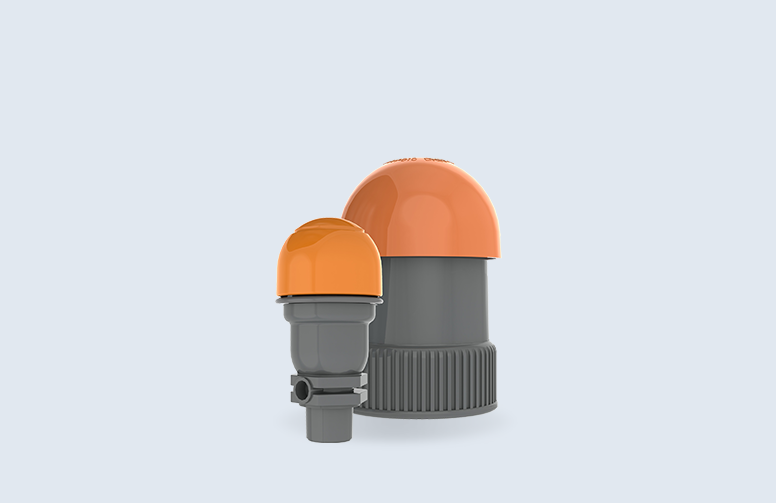

AV-010 Gallery

BENEFITS

Product Benefits

Vast operational pressures

Working pressure ranges from 0.2 - 10 bar.

Small Footprint

Lightweight, small dimensions, simple and reliable construct.

Maximum working temp 60°C

Maximum intermittent temperature: 90°C.
