K-060

K-060
Air & Vacuum

DETAILS

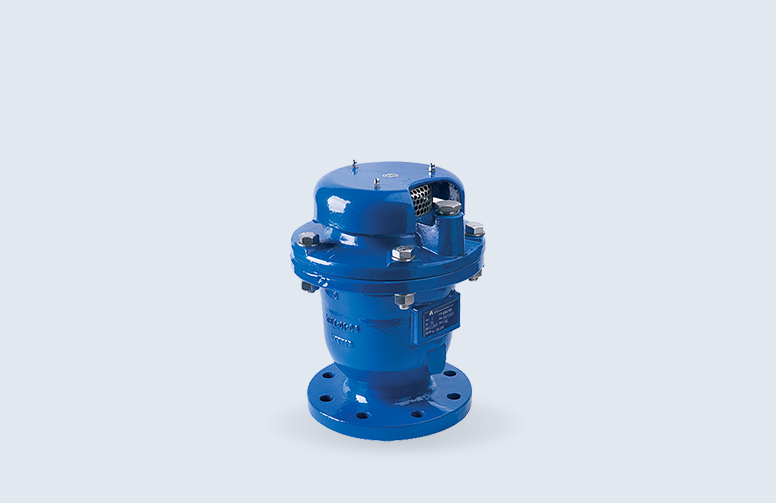

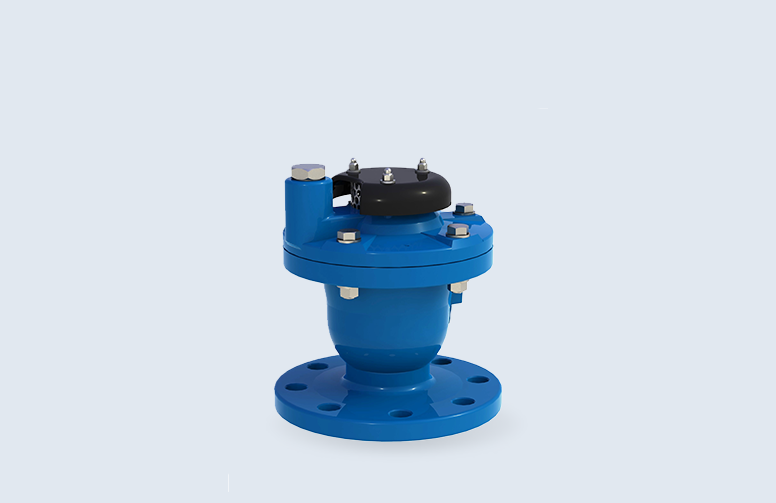

Air & Vacuum Air Valve for High Flow

Product Details

Type

Kinetic

Applications

Municipal and Industrial Water Conveyance, High Pressure Water Systems.

Valve Selection

25mm-250mm (1" - 10") (Model Dependent)

Connection

Threaded (25-50mm only), Flanged

Product Details

The K-060 series air & vacuum valves automatically discharge or admit large volumes of air during the filling or draining of a pipeline or piping system.

The smooth discharge of air prevents pressure surges and other destructive phenomena. The intake of air in response to negative pressure protects the system from destructive vacuum conditions and prevents damage caused by water column separation.

Product Details
BENEFITS

Product Benefits

Aerodynamic Design

Enables high flow rates of air both at intake and at discharge.

Special Orifice seat/seal design

The combination of bronze and E.P.D.M. rubber assures long-term maintenance-free operation.

High Operational Pressures

Working pressure ranges from 0 - 40 bar. (Model Dependent).
