- Amiad Water Systems K-020 air and vacuum valve

K-020

DETAILS

Air and Vacuum Valve

Product Details

Type

Kinetic

Applications

Pump stations for sewage, Wastewater & water treatment plants, Desalination & Sea Water, Mines, Oil & Gas, Ballast Water, Food Industry, Power Plant Cooling.

Valve Selection

80mm-100mm (3" - 4")

Connection

Flanged

The K-020 air & vacuum valves are specifically designed to operate with liquids carrying solid particles such as wastewater and effluents. These air & vacuum valves are designed to expel or admit large volumes of air (gas) during the filling or draining of a pipeline or piping system.

The valves unique long conical body design enables the separation of the liquid from the sealing mechanism and assures optimum working conditions.

Download

View

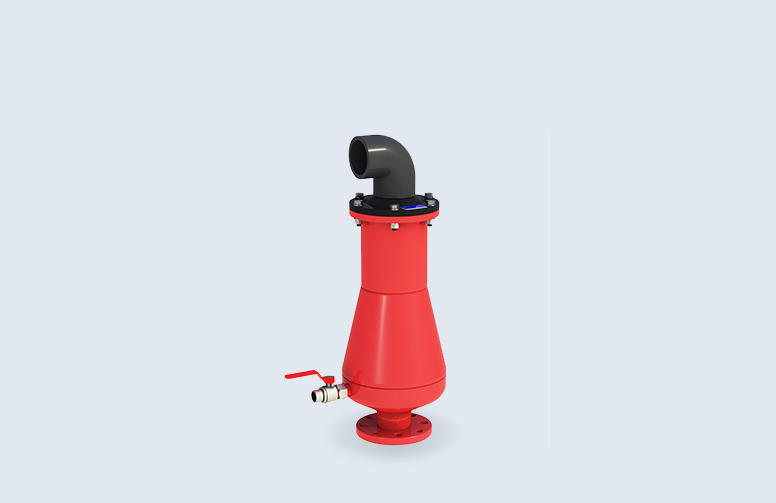

K-020 Gallery

BENEFITS

Product Benefits

Conical body shape

Enables Designed to maintain the maximum distance between the liquid and the sealing mechanism and still obtain minimum body length.disconnection and removal of the D-060 air valve from its subsurface housing, even when the system is under pressure.

Funnel-shaped lower body

Designed to ensure that residue matter will fall back into the system and be carried away by the main pipe.

Vast working pressure range

Working pressure ranges from 0.2 - 25 bar. (Model Dependent)
