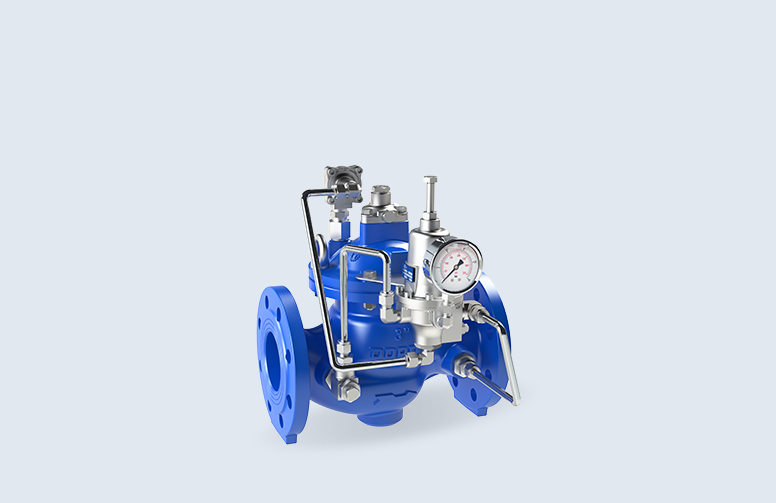

30-QR-2 300 series
Dorot 300
Dorot 300 Series
DETAILS
Ductile Iron Control Valve
Product Details
Type
Control Valve
Applications
Manual, Solenoid Operated, Pressure Reducing, Pressure Sustaining & Relief, Hydraulic Remote Controlled, Flow Control Valves.
Valve Selection
40mm-1m (1.5" - 40")
Connection
Threaded, Flanged, Grooved (Model Dependent)

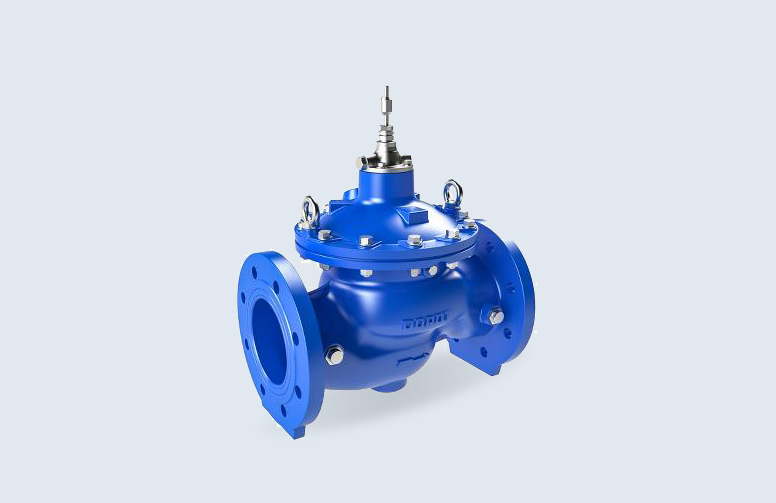

The Dorot 300 series valves are a line of metal globe type automatic control valves designed to withstand the most demanding requirements of water system control.
Download
View
BENEFITS
Product Benefits
Near Zero Flow Regulation
The capability to regulate near zero flow eliminates the need for a special low flow (throttling plug) or By-Pass valve, while ensuring very low head loss in “fully open” position.
Vast operational pressures
Operational from low pressures up to 25 bar
Frictionless Operation
The valve has an internal floating shaft, allowing for frictionless operation. The unique design of the shaft also provides for easy field maintenance.
