Eliptix R-30 & R-31

Eliptix R-30 & R-31

DETAILS
Ductile Iron Control Valve

Product Details

Type

Control Valve

Applications

Straight and Angle variants of the following builds: Manual, Electric Operated, Pressure Reducing, Pressure Sustaining, Quick Pressure Relief Control Valves.

Valve Selection

25mm-400mm (1" - 16")

Connection

Threaded, Flanged, Grooved (Model Dependent)

Product Details

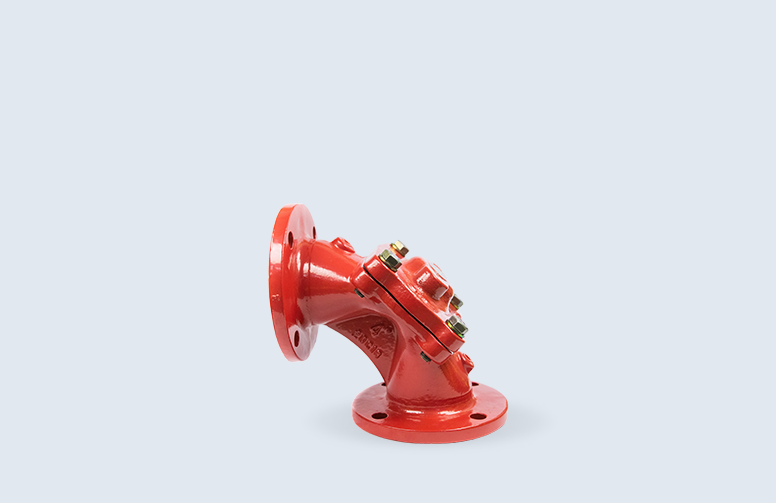

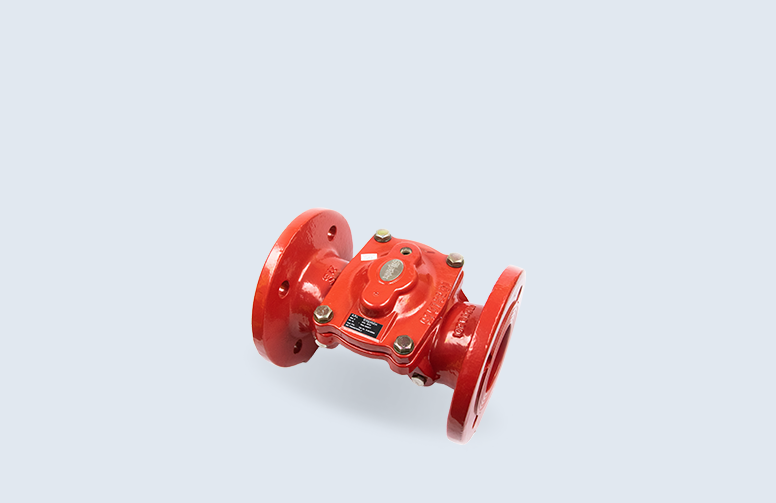

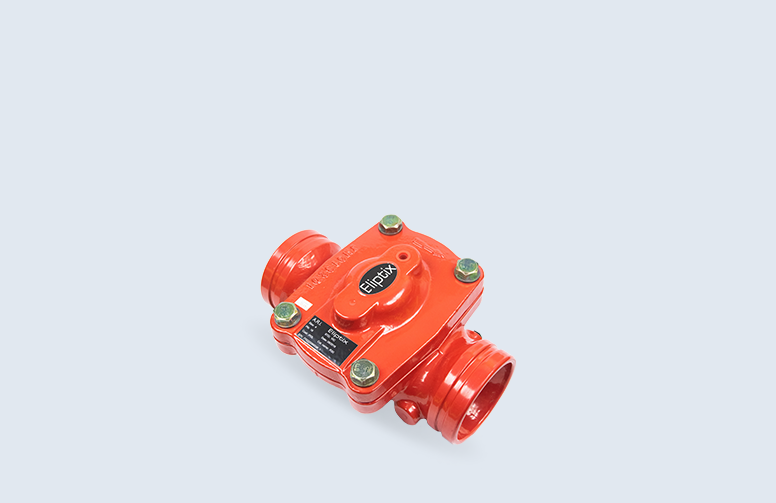

The Eliptix R-30 and R-31 series are a line of metal, diaphragm operated hydraulic control valves. With a broad variety of working pressures of up to 16 bar, the valve is suitable for installation on Water transmission, landscape, Irrigation systems and Infrastructure applications.

The R-30 series has an innovative elliptic shaped spring-loaded diaphragm that reacts according to the downstream pressure changes. To support this, the R-30 integrates well with a wide variety of regulating control pilots, solenoids and control accessories.

Product Details
BENEFITS

Product Benefits

Excellent flow regulating capabilities

Designed for a wide range of flow rates from (500 l/h) to Maximum flow.

Vast operational pressures

Operational from low pressures up to 16 bar

Simple mechanism

An innovative elliptic shaped diaphragm with user-friendly design & maintenance
