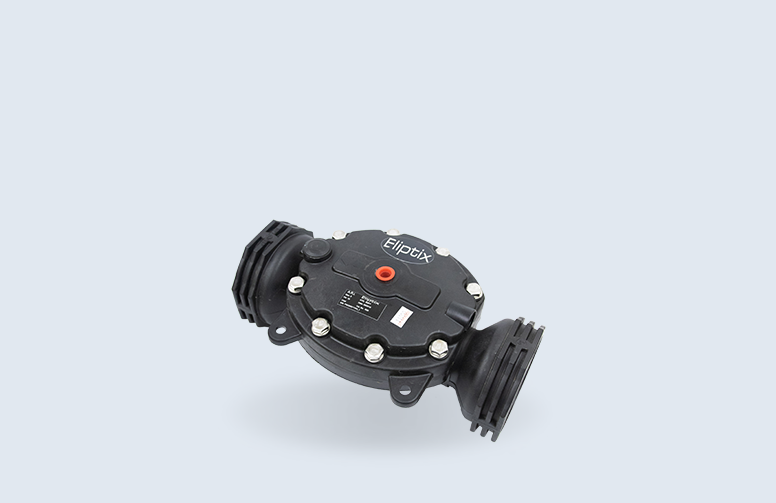

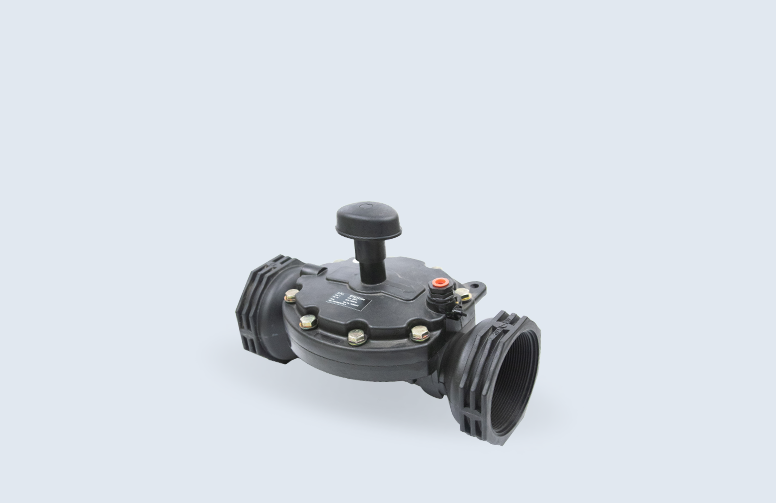

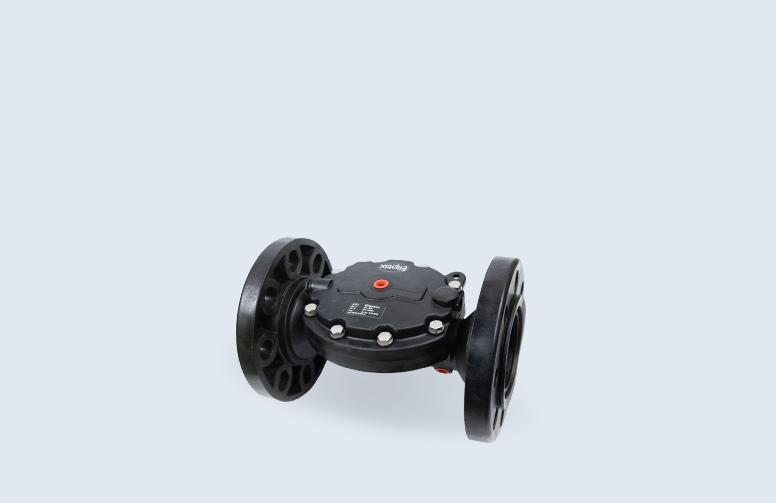

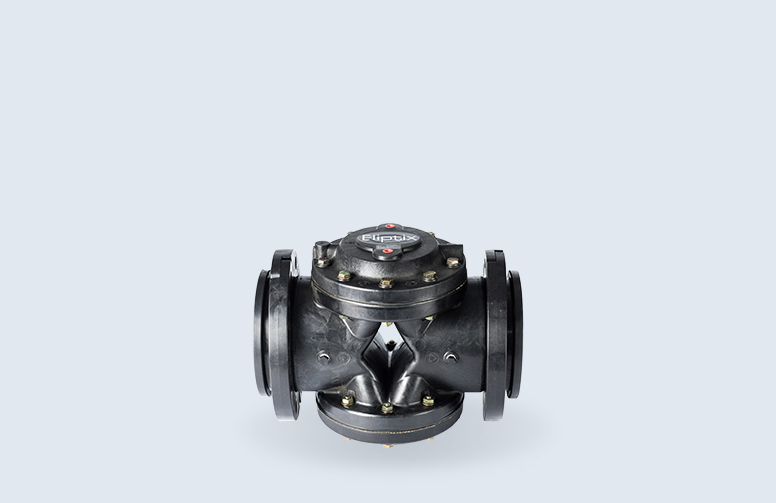

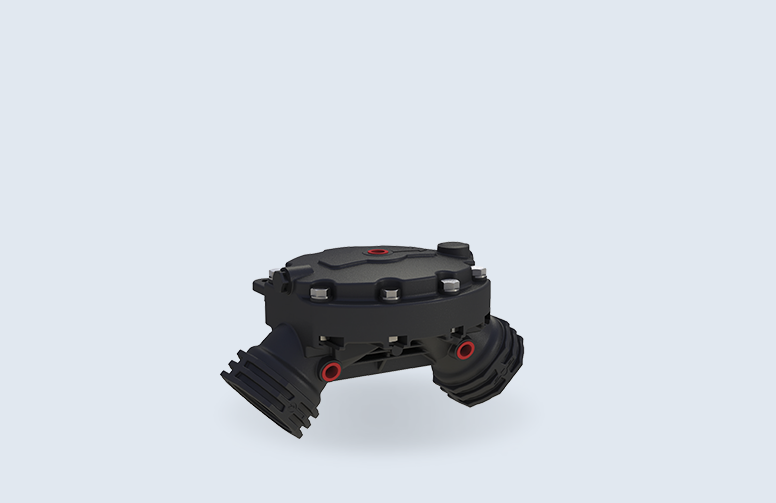

Fliptix R-21 8' R20 double flanged 3' R20 TH PN10 3' R20 FL PN10 3' R20 TH throttling PN10
Eliptix R-20 & R-21
Eliptix R-20 & R-21
DETAILS
Plastic Control Valve
Product Details
Type
Control Valve
Applications
Manual, Electric Operated, Pressure Reducing, Pressure Sustaining, Quick Pressure Relief Control Valves.
Valve Selection
40mm-200mm (1.5" - 8")
Connection
Threaded, Flanged, Grooved (Model Dependent)

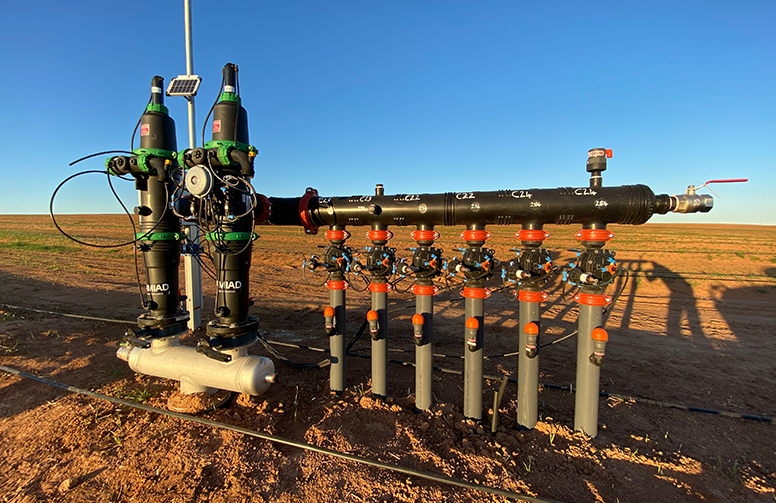

The Eliptix R-20 and R-21 series valves are a line of composite, diaphragm operated hydraulic control valves. With a broad variety of working pressures of up to 10 bar, the valve is suitable for installation on water transmission, landscape and irrigation systems.
The R-20 series has an innovative elliptic shaped spring-loaded diaphragm that reacts according to the downstream pressure changes. To support this, the R-20 integrates well with a wide variety of regulating control pilots, solenoids and control accessories.
The R-20 series has an innovative elliptic shaped spring-loaded diaphragm that reacts according to the downstream pressure changes. To support this, the R-20 integrates well with a wide variety of regulating control pilots, solenoids and control accessories.
Download
View
BENEFITS
Product Benefits
Excellent flow regulating capabilities
Designed for a wide range of flow rates from (500 l/h) to Maximum flow.
Vast operational pressures
Operational from low pressure up to 10 bar
Simple mechanism
An innovative elliptic shaped diaphragm with user-friendly design & maintenance
