S-021

S-021

DETAILS

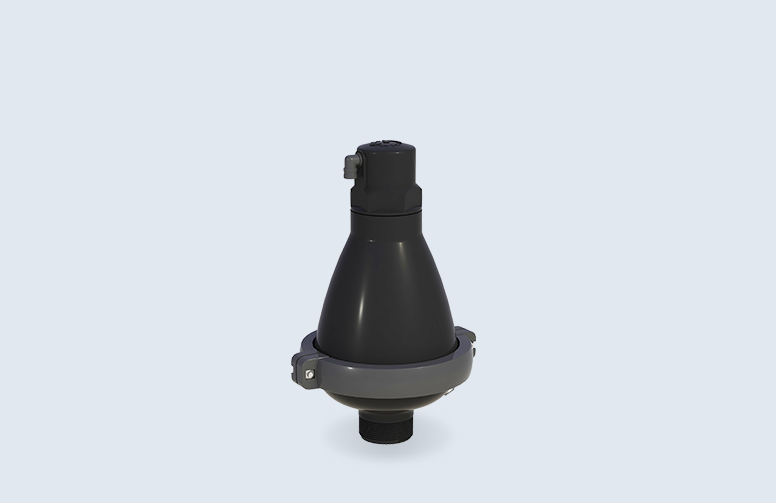

Automatic Air Release Valve

Product Details

Type

Automatic Air Valve

Applications

Water with low concentrations of suspended solids, Desalination & Sea Water, Oil & Gas, Mines, Food Industry, Power Plant Cooling.

Valve Selection

25mm-50mm (1" - 2")

Connection

Threaded, Flanged

Product Details

The S-021 Automatic Air valve discharges accumulated air/gas from a system while it is operating under pressure. The valve is designed to operate with liquids carrying low concentrations of solid particles.

The valves unique long conical body design enables the separation of the liquid from the sealing mechanism and assures optimum working conditions.

Product Details
BENEFITS

Product Benefits

Independent spring-guided linkage

Allows free movement of the float and rod. Vibrations and movement of the lower float due to turbulence will not unseal the upper float mechanism.

Funnel-shaped lower body

Designed to ensure that residue matter will fall back into the system and be carried away by the main pipe.

Rolling Seal

The rolling seal provides smooth positive opening and closing over a wide range of pressure differentials.
