D-43

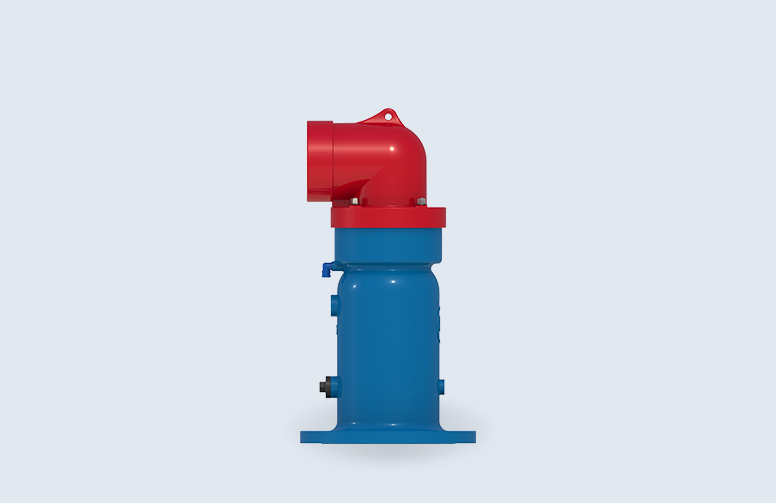

D-43 SIDE

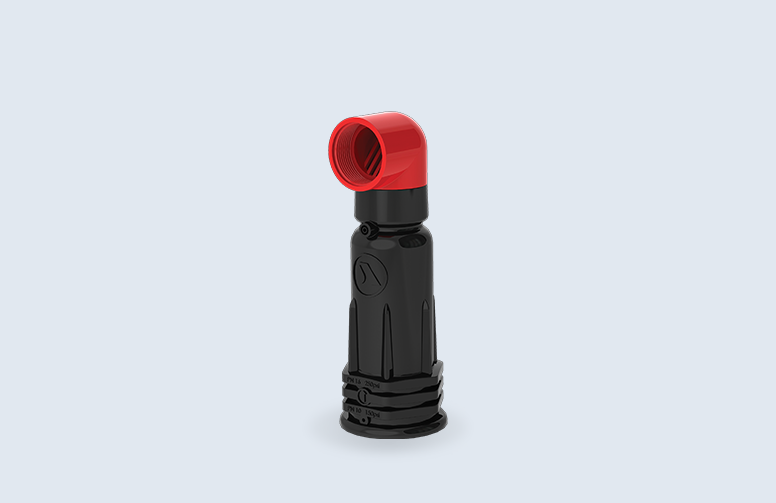

D-43 P

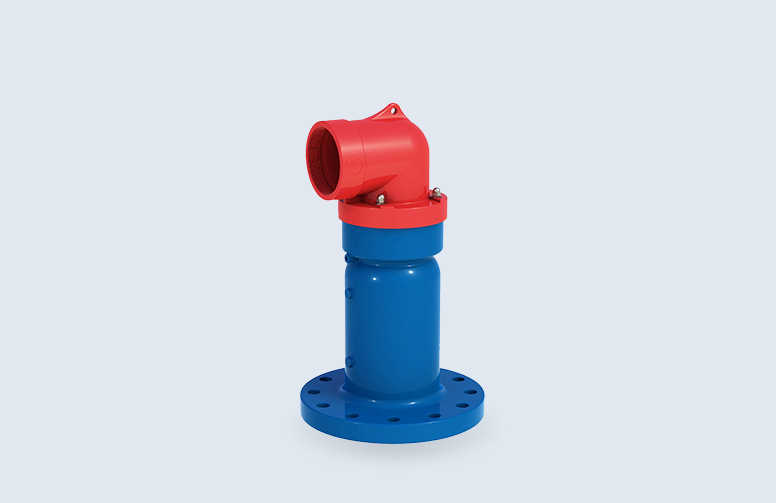

D-43, D-43P
D-43, D-43P
DETAILS
Combination Air Valve
Product Details
Type
Combination Air Valve
Applications
Pump Stations, Downstream & Upstream of Shut-off Valves, After Deep-well Pumps, At End Lines, Before Water Meters, On Strainers & Filters.
Valve Selection
50mm-150mm (2" - 6")
Connection
Flanged, Threaded NPT or BSPT
The Barak Pro D-43 series air valves use an internal float and seal design along with an air release rolling seal to provide the features of both an air release valve and an air & vacuum valve into one compact product.
The air release component is designed to automatically release small pockets of air to the atmosphere when operating under pressure. The air & vacuum component is designed to automatically discharge or admit large volumes of air during the filling or draining of a pipeline or piping system.
The air release component is designed to automatically release small pockets of air to the atmosphere when operating under pressure. The air & vacuum component is designed to automatically discharge or admit large volumes of air during the filling or draining of a pipeline or piping system.
Download
View
BENEFITS
Product Benefits
Small & Simple
Lightweight, small dimensions, simple and reliable structure.
Vast operational pressures
Lightweight, small dimensions, simple and reliable construct.
Minimum Maintenance Downtime
All operating parts are consolidated into one replaceable cartridge.
