K-010, K012, K014, K016, K-100

K-010, K012, K014, K016, K-100

DETAILS

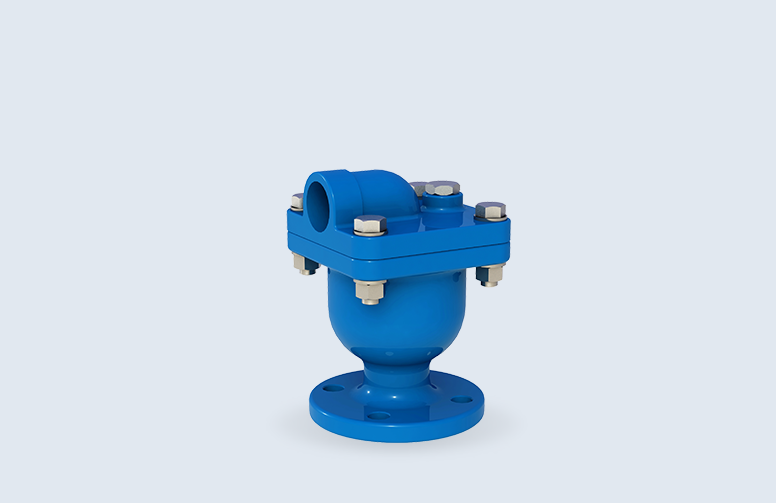

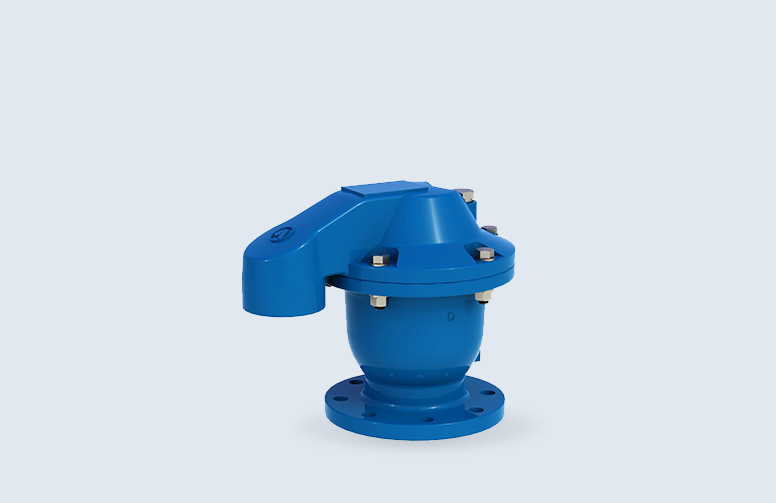

High Pressure Air & Vacuum Valve

Product Details

Type

Kinetic Valve

Applications

Desalination & Sea Water, Mines, Marine - Ballast Water, Oil & Gas, Power Plant Cooling.

Valve Selection

50mm-300mm (2" - 12") (Model Dependent)

Connection

Threaded (50mm only), Flanged

Product Details

The K-010 series air & vacuum valves automatically discharge or admit large volumes of air during the filling or draining of a pipeline or piping system.

The smooth discharge of air prevents pressure surges and other destructive phenomena. The intake of air in response to negative pressure protects the system from destructive vacuum conditions and prevents damage caused by water column separation.

Product Details
BENEFITS

Product Benefits

Dynamic Design

The dynamic design allows for high capacity air discharge while also preventing premature closure.

Special orifice seat/seal design

The combination of metal and E.P.D.M. rubber assures long-term maintenance-free operation.

High Operational Pressures

Working pressure ranges from 0 - 100 bar. (Model Dependent).
