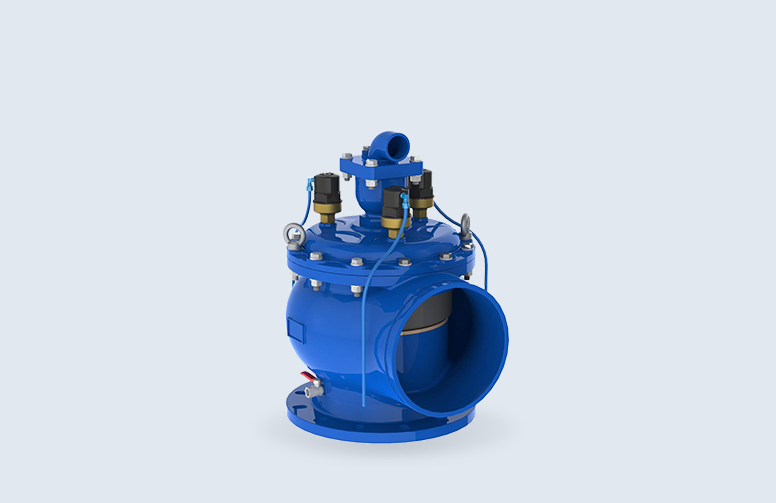

D-070 12inch

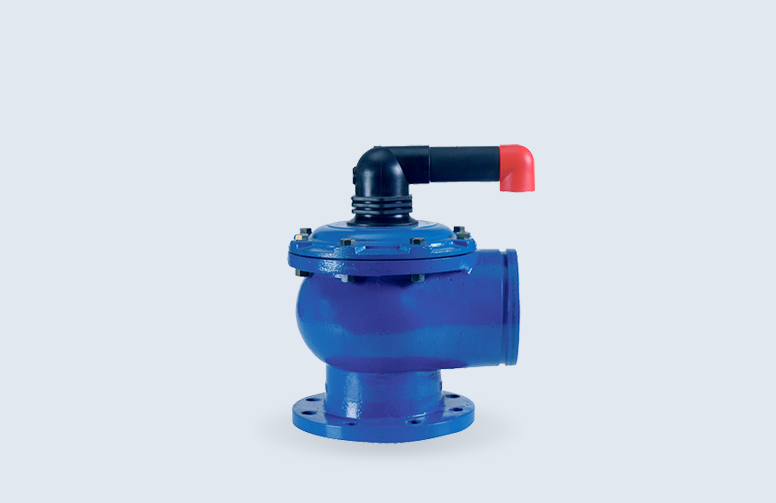

D-070

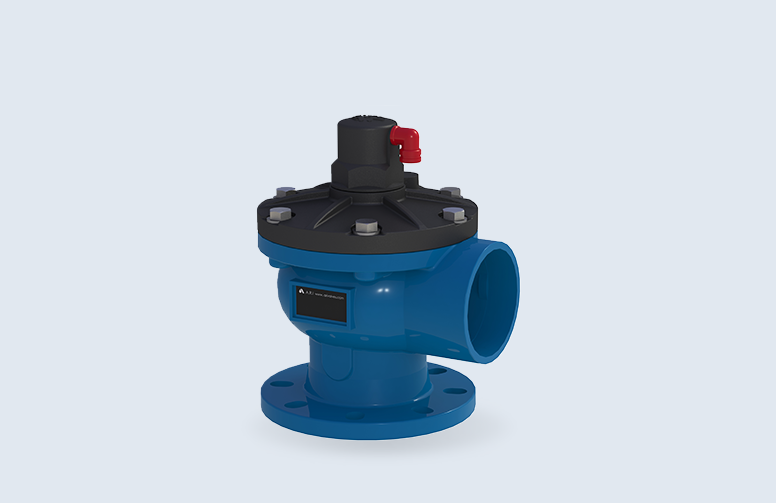

D-070 (2)
D-070
D-070
DETAILS
Dynamic Combination Air Valve
Product Details
Type
Dynamic Air Valve
Applications
Pumping Stations, Water Systems, Sea Water, Ballast Water, Oil & Gas, Food Industry, Power Plant Cooling.
Valve Selection
80mm-300mm (3” - 12")
Connection
Threaded, Flanged
The D-070 dynamic combination air valve is a unique valve that operates without a float, instead utilizing the rolling diaphragm principle. This unique design allows air to discharge in a controlled and gradual manner, preventing slam and local up-surges.
When the line is not operating, the air & vacuum component of the dynamic air valve is normally closed, preventing the infiltration of debris and insects into the water system.
When the line is not operating, the air & vacuum component of the dynamic air valve is normally closed, preventing the infiltration of debris and insects into the water system.
Download
Play
View
BENEFITS
Product Benefits
Unique Design
Operates without a float and utilizes a rolling diaphragm principle designed for surge protection.
Multiple Uses
Can replace normal air valves and surge anticipating valves. Also has the ability to be converted to a quick relief valve.
Vast operational pressures
Working pressure ranges from 0.2 - 16 bar.
