- Amiad Water Systems NR-010 Wafer Type Non-Return Valve

NR-010

DETAILS

Wafer Style Check Valve

Product Details

Type

Non-Return Valve

Applications

After pumps/boosters, Filtration Systems, Fertilizer system, Desalination & Sea Water, Mines, Marine - Ballast Water, Oil & Gas, Food Industry, Power Plant Cooling, Fuel,

Valve Selection

40mm-250mm (1.5" - 10")

Connection

Threaded, Flanged

The NR-010 check valve prevents the return flow of water to its source. It has a quick, spring-assisted closure, minimizing the possibility of water hammer whilst maintaining free flow of water without interference and with minimal head loss.

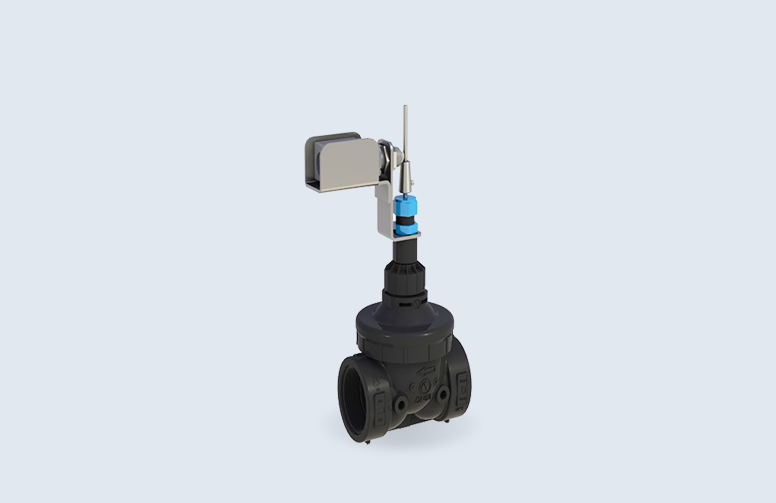

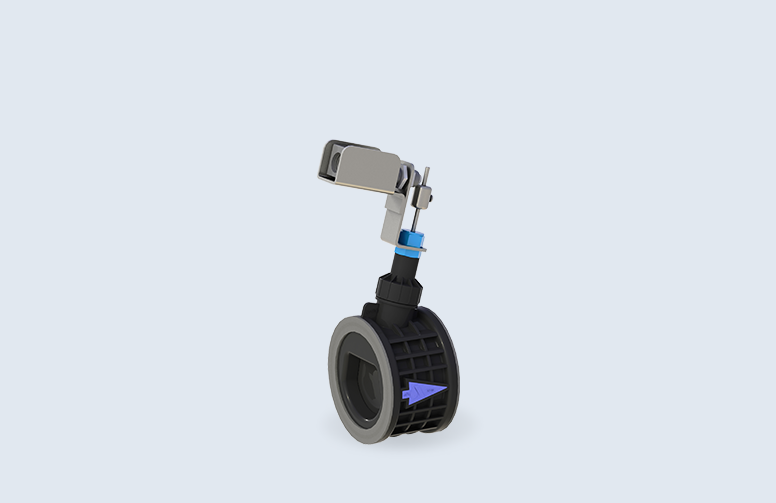

The check valve is compatible for installation on pipelines with horizontal pumps or boosters. The valve is also available with a limit switch that transmits a contact signal upon the start or end of flow

Download

View

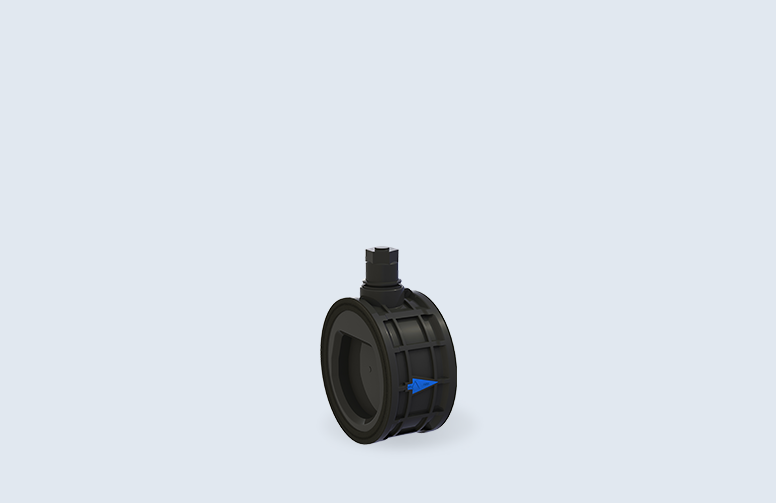

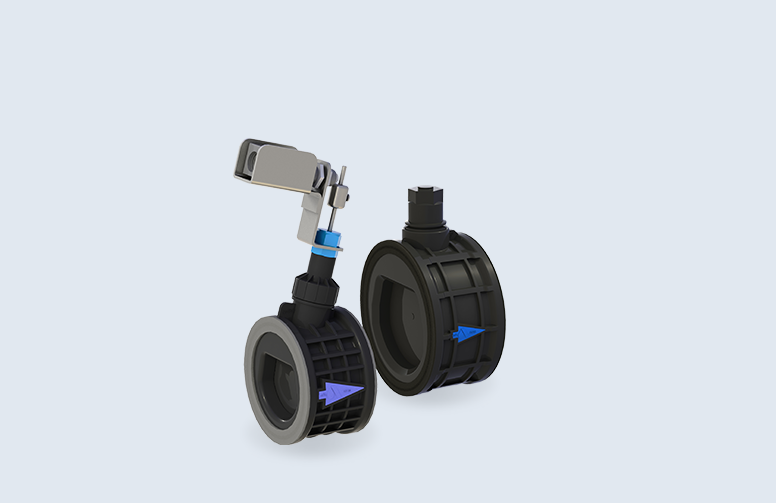

NR-010 Gallery

BENEFITS

Product Benefits

Simple Design

A simple design for free flow of water without interference and with minimal head loss.

Vast operational pressures

Working pressure ranges from 0.02 - 16 Bar

Composite Body

The check valve is made from composite materials to withstand highly abrasive conditions and to ensure long-term service in corrosive liquid environments such as seawater, brine and chlorine water.
