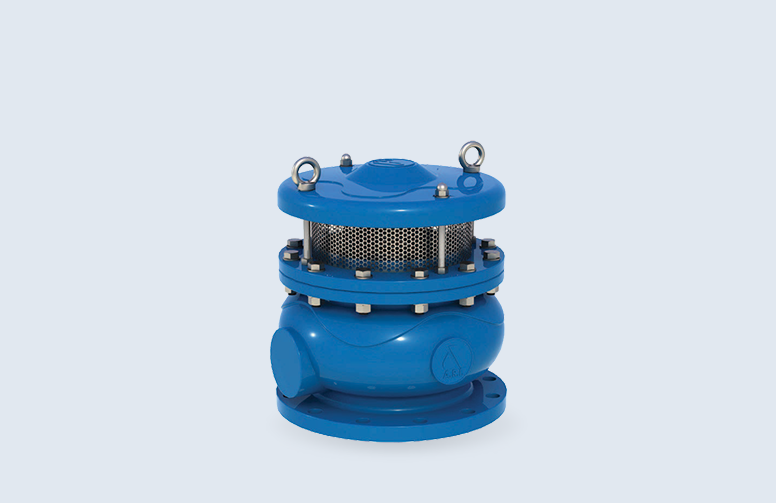

VB-060

VB-060
Vacuum Breaker

DETAILS
Disc-Type Spring-Loaded Vacuum Breaker

Product Details

Type

Kinetic

Applications

Pump Stations, Water Transmission Lines.

Valve Selection

200mm-600mm (8" - 24")

Connection

Flanged

Product Details

The VB-060 is a normally closed full-bore vacuum breaker which is designed to open fully to allow the intake of air into the pipeline or system when vacuum conditions occur. The air valve protects the pipeline from negative pressure (vacuum) conditions caused by sudden shutoff of the pumps, pipe ruptures or the rapid draining of the pipeline.

Product Details
BENEFITS

Product Benefits

Low Sealing pressure

VB-060: 0.01 bar / VB-060 + AV: 0.2 bar.

Special Orifice seat/seal design

The combination of stainless steel and EDPM, assures long term maintenance-free operation.

High Working Pressures

Working pressure ranges from 0 - 40 bar. (Model Dependent).
