DETAILS

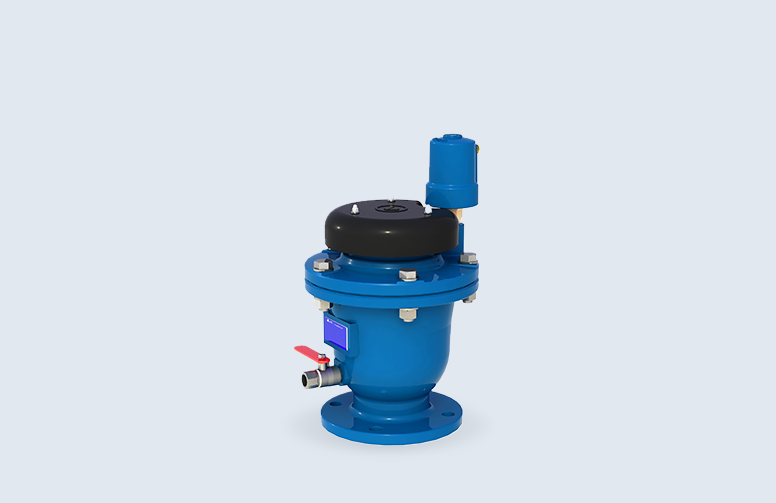

High Flow Combination Air Valve
Product Details
Type
Combination Air Valve
Applications
Desalination & Sea Water, Mines, Marine - Ballast Water, Oil & Gas, Food Industry, Power Plant Cooling, Fuel, Hydro / Thermal Power.
Valve Selection
25mm-250mm (1"- 10")
Connection
Threaded (25mm only), Flanged
The D-060 series has the features of both an air release valve and an air & vacuum valve. The valve is designed to automatically release small pockets of built up air to the atmosphere during operation, and also automatically discharges or admits large volumes of air during the filling or draining of a pipeline.
Download
View
BENEFITS
Product Benefits
Aerodynamic Design
Enables high flow rates of air both at intake and at discharge.
Reliable Operation
Reliable operation reduces water hammer incidents.
High Working Pressures
Working pressure ranges from 0 - 25 bar. (Model Dependent).
