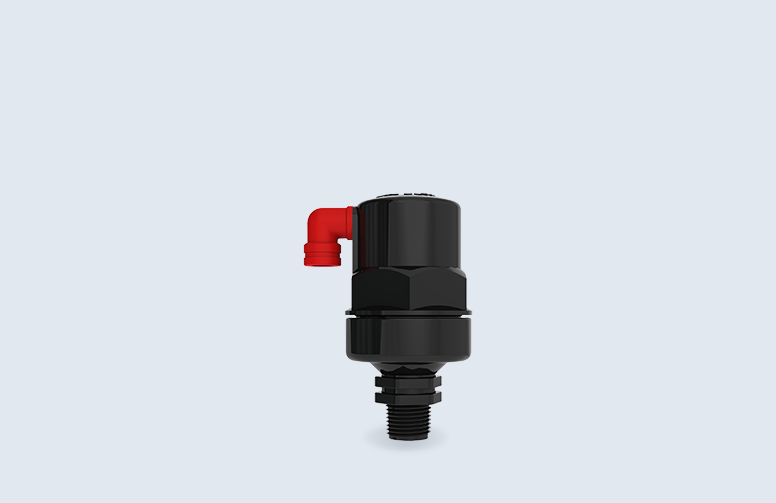

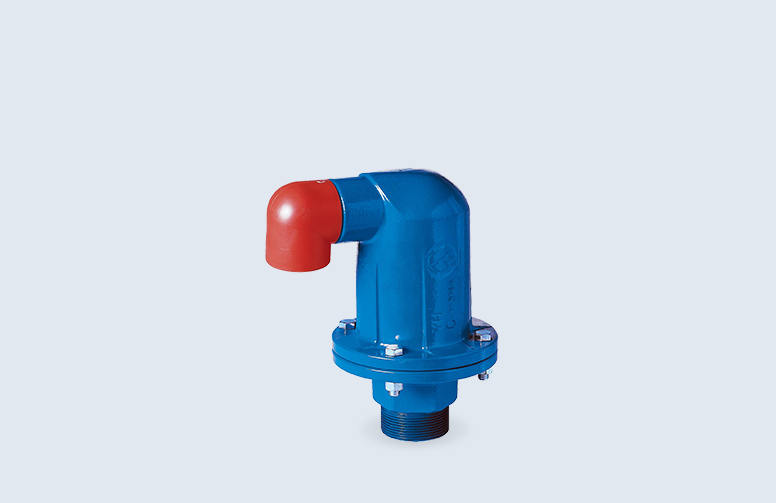

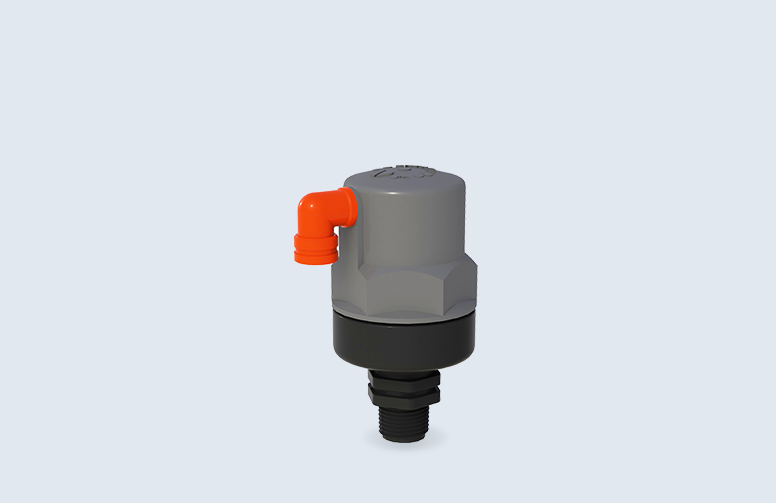

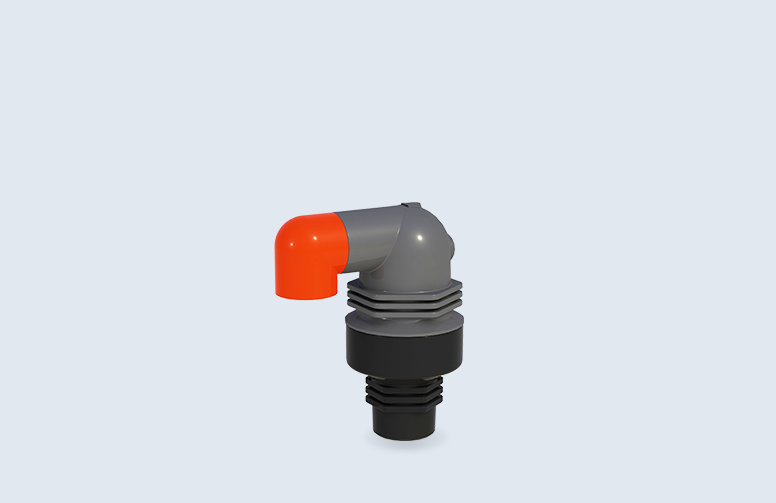

D-040, DG-10

D-040, DG-10

DETAILS

Combination Air Valve

Product Details

Type

Combination Air Valve

Applications

Sea Water, Mines, Ballast Water, Oil & Gas, Food Industry, Power Plant Cooling, Pump Stations.

Valve Selection

12mm-50mm ( 1/2”, 3/4”, 1”, 2”)

Connection

Threaded, (Flange accessories available)

Product Details
The DG-10, D-040 series air valve uses a rolling seal design that combines the features of both an air release valve and an air & vacuum valve into one compact product.

The air release component is designed to automatically release small pockets of air to the atmosphere when operating under pressure. The air & vacuum component is designed to automatically discharge or admit large volumes of air during the filling or draining of a pipeline or piping system.
Product Details
BENEFITS

Product Benefits

Dynamic Design

The dynamic design allows for high capacity air discharge while also preventing premature closure.

Small Footprint

Lightweight, small dimensions, simple and reliable construct.

Rolling Seal

The rolling seal provides smooth positive opening and closing over a wide range of pressure differentials.
