Dynamic Combination Air Valve
Product Details
Type
Dynamic Air Valve
Applications

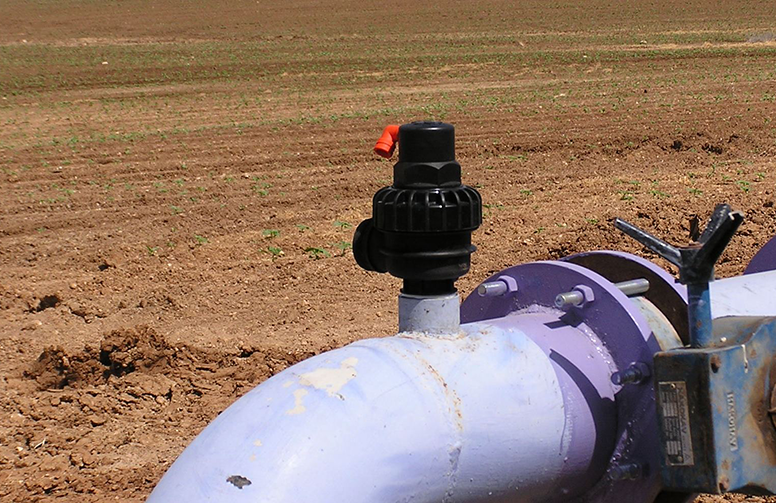

Installation on Water Systems, Desalination & Sea Water, Food Industry, Power Plant Cooling.
Valve Selection
50mm-100mm (2"- 4")
Connection
Threaded (50-80mm), Flanged

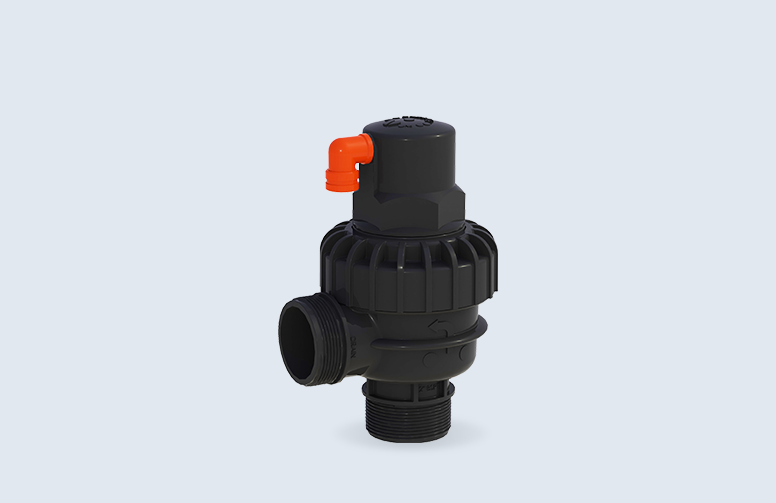

The D-070P dynamic combination air valve is a unique valve that operates without a float, Instead utilizing the rolling diaphragm principle. This unique design allows air to discharge in a controlled and gradual manner, preventing slam and local up-surges.
When the line is not operating, the air & vacuum component of the dynamic air valve is normally closed, preventing the infiltration of debris and insects into the water system.
When the line is not operating, the air & vacuum component of the dynamic air valve is normally closed, preventing the infiltration of debris and insects into the water system.
Download
Play
View
BENEFITS
Product Benefits
Quiet Closing
Extremely quiet closing.
Small Footprint
Lightweight, small dimensions, simple and reliable construct.
Vast operational pressures
Working pressure ranges from 0.2 - 16 bar.
