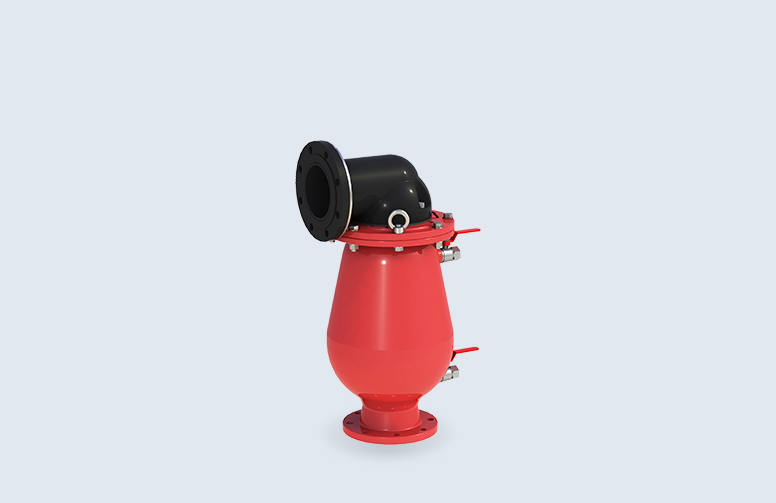

D-26

D-26

DETAILS
Combination Air Valve

Product Details

Type

Combination Air Valve

Applications

Wastewater & water treatment plants, Desalination & Sea Water, Mines, Oil & Gas, Marine - Ballast Water, Food Industry, Power Plant Cooling.

Valve Selection

50mm-200mm (2" - 8")

Connection

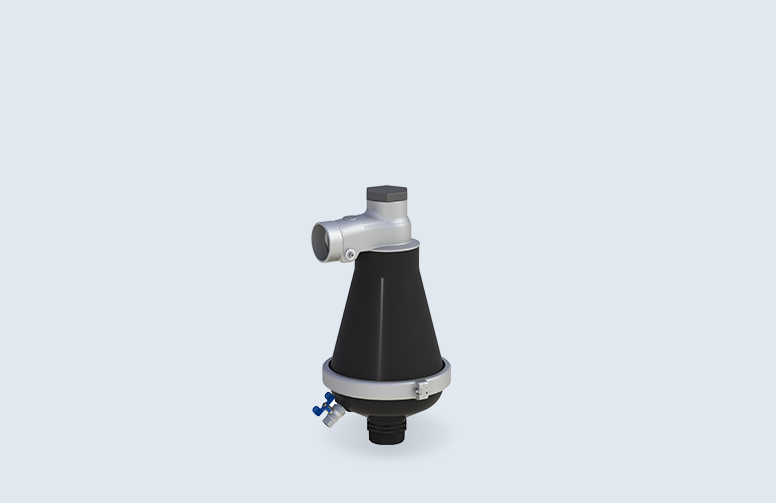

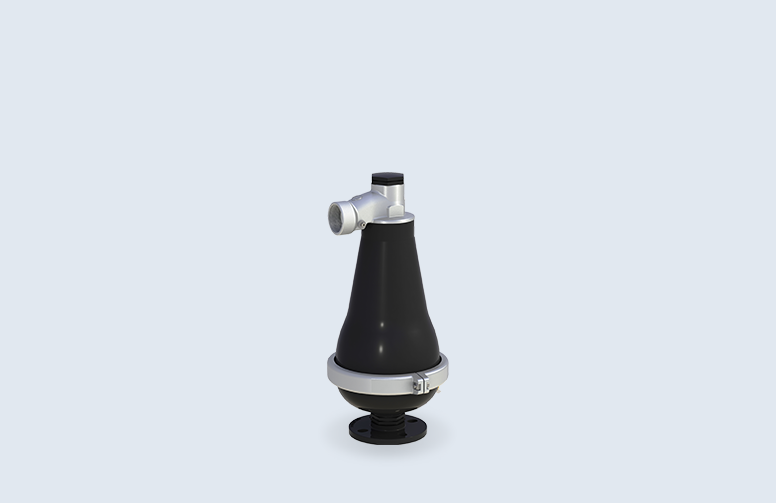

Threaded (50-80mm Only), Flanged

Product Details

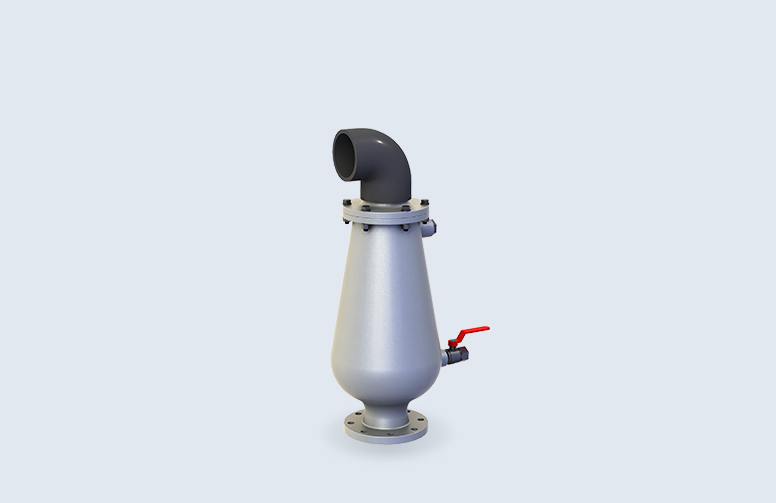

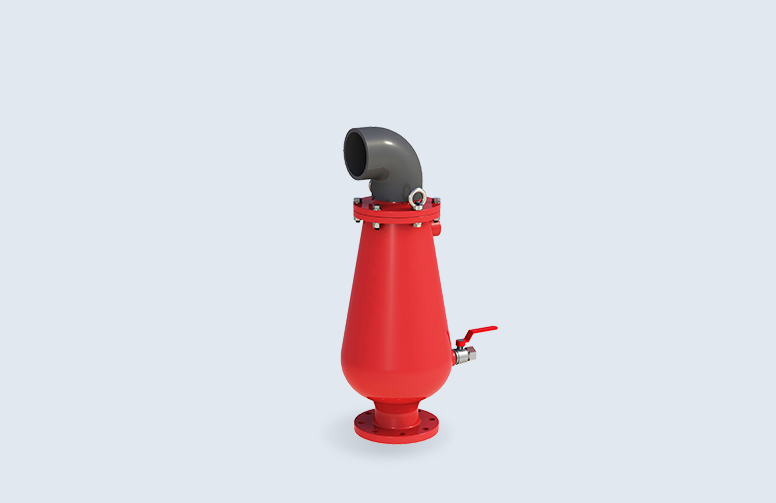

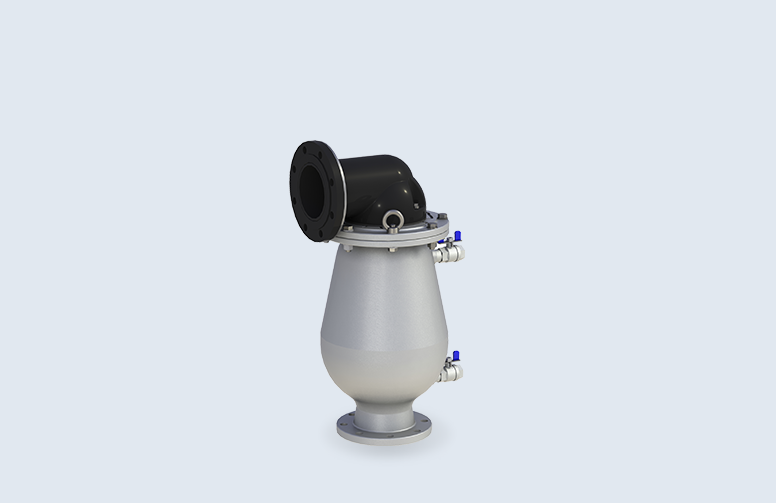

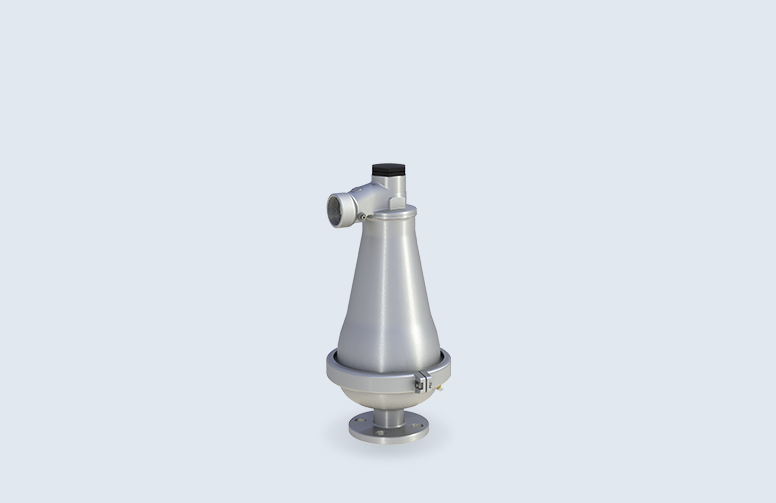

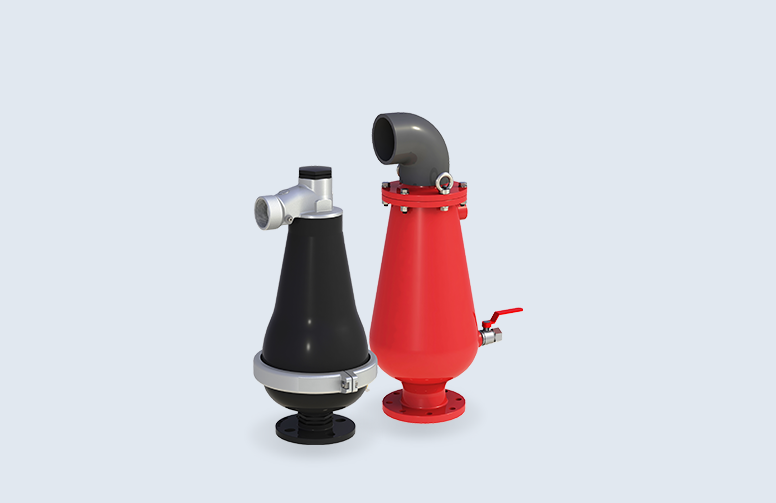

The D-26 & D-23 combination air valve features both an air release valve and an air & vacuum valve, incorporated into a single body. The D-26 & D-23 are specifically designed to operate with liquids carrying solid particles such as wastewater and effluents.

The combination air valve releases accumulated air (gas) from the system during operation under pressure and also discharges air (gas) during the filling or charging of the system. The valve also admits air into the system during drainage and at water column separation.

Product Details
BENEFITS

Product Benefits

Conical body shape

Designed to maintain the maximum distance between the liquid and the sealing mechanism and still obtain minimum body length.

Independent spring-guided linkage

Allows free movement of the float and rod. Vibrations and movement of the lower float due to turbulence will not unseal the upper float mechanism.

Funnel-shaped lower body:

Designed to ensure that residue matter will fall back into the system and be carried away by the main pipe.
